Maxim New DS28E84Q+U DeepCover Radiation-Resistant High-Capacity, 1-Wire Authenticator

The DS28E84 is a radiation-resistant secure authenticator that provides a core set of cryptographic tools derived from integrated asymmetric (ECC-P256) and symmetric (SHA-256) security functions. In addition to the security services provided by the hardware implemented crypto engines, the device integrates a FIPS-compatible true random number generator (TRNG), 10Kb of secured OTP, 15Kb of FRAM, one configurable GPIO, and a unique 64-bit ROM identification number (ROM ID).
  • Operating Range: 3.3V ±10%, 0°C to +50°C
  • ±8kV HBM ESD Protection of 1-Wire IO Pin
  • 6-Pin, 3mm x 3mm TDFN
  • Advanced 1-Wire Protocol Minimizes Interface to Just Single Contact
  • Unique and Unalterable Factory Programmed 64-Bit Identification Number (ROM ID)
  • SHA-256 OTP (One-Time Pad) Encrypted R/W of Configurable Memory Through ECDH Established Key
  • ECC-P256 Compute Engine
DS28E84EVKIT#

The DS28E84 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28E84. The EV system consists of five DS28E84/DS2476 devices in a 6-pin TDFN package, two DS9121AQ+ evaluation TDFN socket boards, and a DS9481P-300# USB-to-I2C/1-Wire® adapter. The evaluation software runs under Windows® 10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. It provides a handy user interface to exercise the features of the DS28E84 and DS2476.

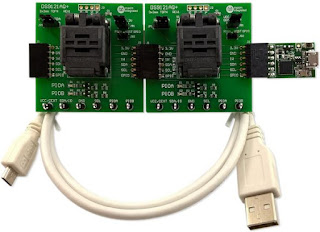

DS28E84, DS2476 Evaluation board

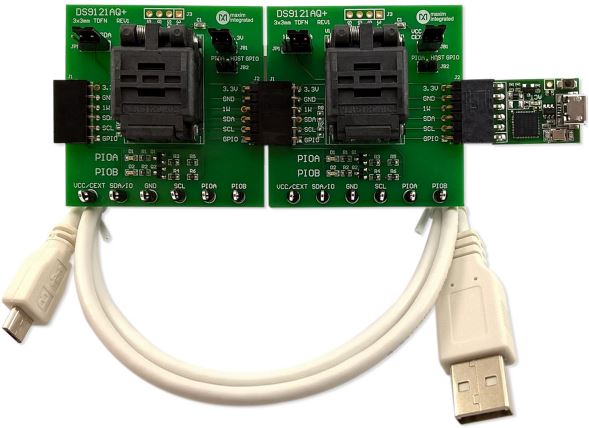

DS28E84, DS2476 Evaluation board
EV Kit Contents
1. DS28E84 DeepCover Radiation Resistant 1-Wire Authenticator (6 TDFN)
2. DS2476Q+ DeepCover Secure Coprocessor (6 TDFN)
3. DS9121AQ+ Socket Board (6 TDFN)
4. DS9481P-300# USB to 1W/I2C Adapter
5. USB Type-A to Micro-USB Type-B Cable










To buy this product please click this link
